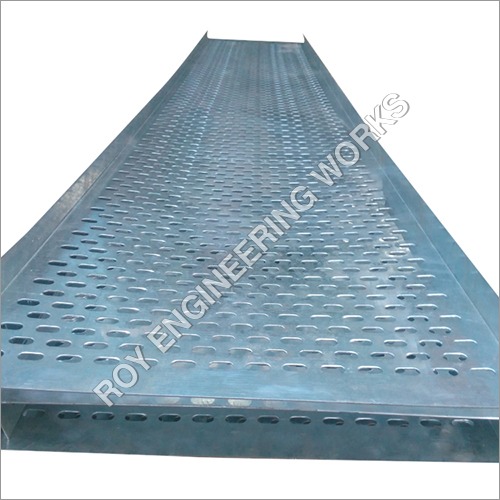

Hot Dip Galvanised Cable Tray

Name: Hot Dip Galvanised Cable Tray
Brand: ROY ENGINEERING WORKS
Price: 100-1200 INR
Availability: InStock

Price 100-1200 INR/ Piece

Get a Price/Quote

MOQ : 100 Meters

Hot Dip Galvanised Cable Tray Specification

Max. Working Load
Up to 120 kg/m (depending on size and support spacing)

Surface Finish
Hot Dip Galvanised

Deflection
Less than 1/200th of span

Conductor Material
Steel

Product Type
Perforated Through

Material
Steel

Standard Thickness
1.2 mm, 1.6 mm, 2 mm, 2.5 mm, 3 mm

Length
2500 mm

Width
100 mm to 1000 mm

Side Rail Height
50 mm, 75 mm, 100 mm, 150 mm

Weight
Varies with size and thickness

Dimension (L*W*H)
2500 mm x (100 to 1000) mm x (50 to 150) mm

Color
Silver / Metallic

Warranty
One Year

Installation Type
Suitable for indoor and outdoor applications

Corrosion Protection
Yes, hot dip galvanised for high corrosion resistance

Temperature Range
-40C to +200C

Perforation Pattern
Standard slots and holes for cable tie and ventilation

Edge Type
Deburred edges for safety

Accessories
Available: Coupler plates, bends, tees, elbows, covers

Mounting Type
Wall, floor, and ceiling mount

Compliance Standard
IS 2629, IS 4759, BS EN ISO 1461

Fire Resistance
Good (Non-combustible steel construction)

UV Resistance
Yes, suitable for outdoor use

Hot Dip Galvanised Cable Tray Trade Information

Minimum Order Quantity
100 Meters

FOB Port
kolkata

Supply Ability
40000 Meters Per Month

Delivery Time
7 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
Standard

Main Domestic Market
Tripura, Meghalaya, Arunachal Pradesh, Jharkhand, Bihar, East India, Manipur, Mizoram, West Bengal, Nagaland, Sikkim, Assam, Odisha, All India

Certifications
ISO 9001:2015

About Hot Dip Galvanised Cable Tray

Owing to our rich industrial experience of 22 years, we have successfully been engrossed in manufacturing, exporting and supplying top-in-class Hot Dip Galvanised Cable Tray. The offered tray is manufactured under the surveillance of our ingenious professionals with the aid of innovative techniques using optimum quality raw materials with galvanised finish. This tray is widely used in data centers and offices to distribute communication cables. Besides, the provided Hot Dip Galvanised Cable Tray can be purchased from us a competitive prices.

Features:

Supreme finish
Corrosion resistance
Accurate dimension
Enhanced durability

Product Details:

Brand Name	REW
Business type	Manufacturing , Trading
Warranty	1 Year
Material Used	Galvanzed Sheets
Monthly Production	As Per Client Requirements
Experience	20 Years
Size	50mm to 600mm
Min. order quantity	As Per Client Requirements
Design	As Per The Drawings
After-Sales Service Provided	Yes
Place of manufacturer	West Bengal (Howrah)

Packaging & Delivery Details:

Packaging Detail	As Per The Client Requirements
Delivery Detail	As Per The Client Requirements
Shipment By	Road Transport

Exceptional Corrosion Protection

Leveraging advanced hot dip galvanisation, this cable tray delivers outstanding protection against rust and environmental wear. It reliably performs in humid, corrosive, and outdoor settings, ensuring your infrastructure remains secure over time.

Compliant and Versatile Cable Management

Designed according to IS 2629, IS 4759, and BS EN ISO 1461, this tray provides safe and efficient cable organisation. The perforated pattern enhances airflow and cable tie convenience, while accessories support customised configurations for varied installation needs.

FAQs of Hot Dip Galvanised Cable Tray:

Q: How does the hot dip galvanisation process enhance corrosion resistance for the cable tray?

A: The tray undergoes a hot dip galvanisation process where it is immersed in molten zinc, creating a robust layer that shields the steel from moisture, chemicals, and environmental aggressors. This ensures long-lasting corrosion protection, making it ideal for demanding indoor and outdoor environments.

Q: What installation options are available for the Hot Dip Galvanised Cable Tray?

A: You can mount the cable tray on walls, ceilings, or floors, offering flexibility for various project requirements. Its durable design supports both indoor and outdoor installations, thanks to its fire and UV resistance.

Q: When should the perforated cable tray be used instead of a solid tray?

A: Perforated cable trays are recommended when cable ventilation and heat dissipation are important, such as in high-power or crowded cable runs. Standard slots and holes also facilitate secure cable tie placement and allow for easy system modifications.

Q: Where can I use this cable tray for optimal protection and longevity?

A: The hot dip galvanised cable tray is suitable for use in commercial buildings, industrial facilities, outdoor data centers, and utility sites across Indiaanywhere you need reliable cable support in environments exposed to moisture, chemicals, or UV radiation.

Q: What accessories are offered with the cable tray for streamlined cable management?

A: A variety of accessories are available, including coupler plates, bends, tees, elbows, and covers. These components simplify installation, enable custom cable routing, and further secure your electrical infrastructure.

Q: How does the deburred edge design benefit users during installation and maintenance?

A: Deburred edges eliminate sharp surfaces, minimizing the risk of injury during handling and installation. They also protect cables from abrasion, contributing to a safer and more reliable cabling environment.

Q: What standards does this cable tray comply with, and why is compliance important?

A: The tray adheres to IS 2629, IS 4759, and BS EN ISO 1461 standards, which certify its manufacturing quality, galvanisation process, and performance attributes. Compliance ensures safety, reliability, and compatibility with professional electrical system requirements.
